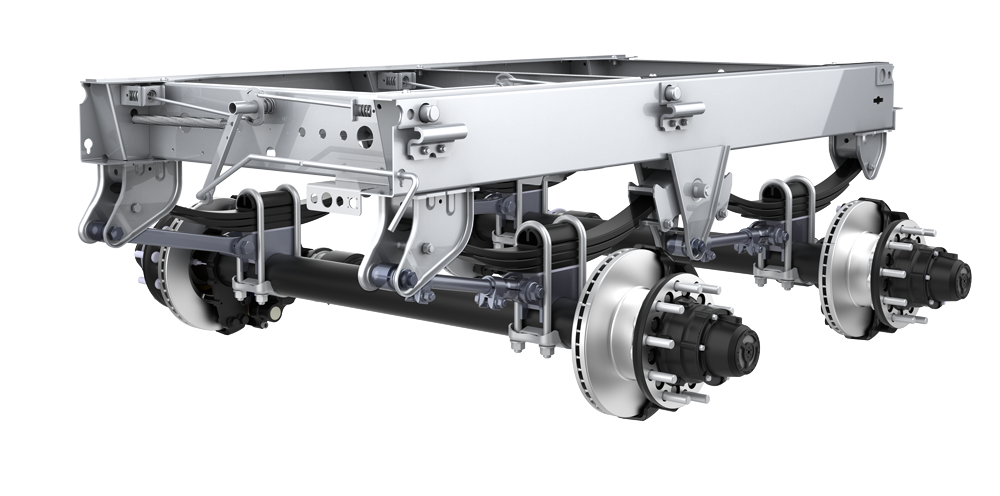

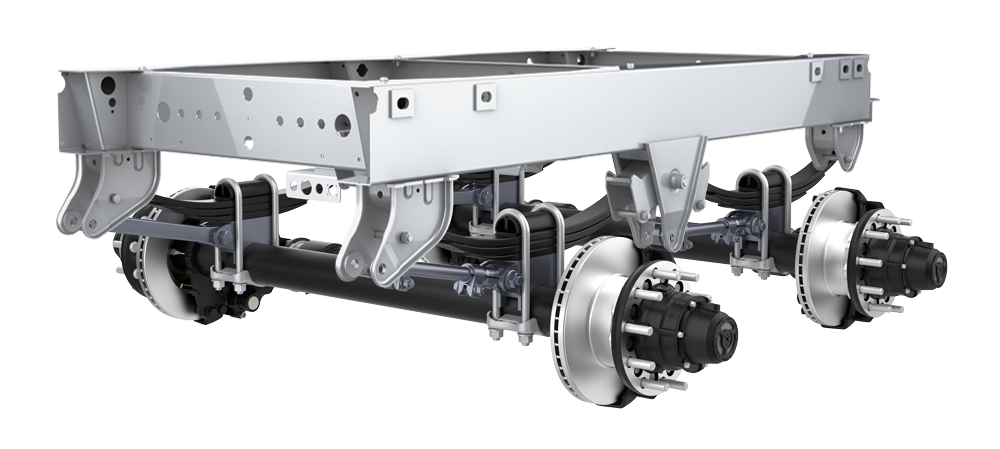

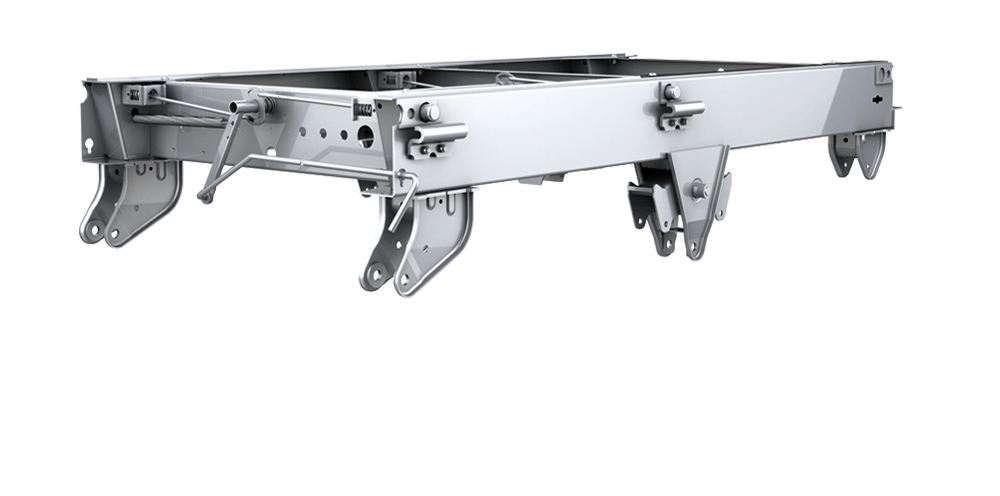

The MA816 Mechanical Bogie system is
The MA816 is designed to be lightweight and durable, featuring a standard hot-dip galvanized finish and an easy-to-mount axle system
The HDNABI® suspension slider is built to be the industry’s best in weight and strength. Our slider features an advanced frame design that will suit your specific requirements.

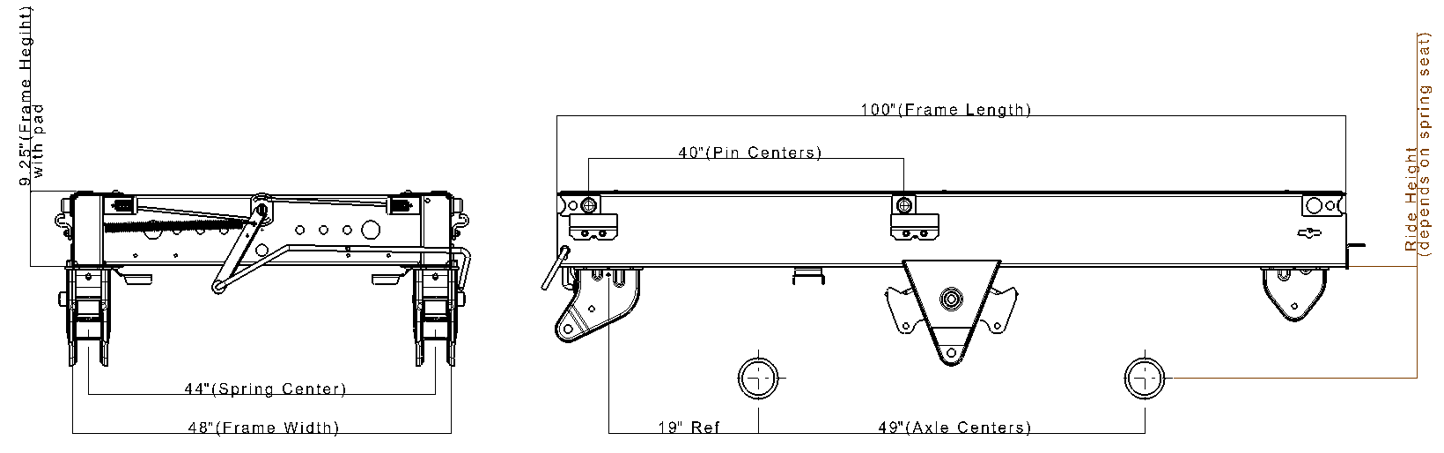

Specification
| Items | Slider Specifications | ||
| Manual pin puller | Air pin puller | ||
| Frame | Capacity | 40,000 lb | 40,000 lb |
| Size (W x L x H) | 48" x 100" x 9.25" (with pad) | 48" x 100" x 9.25" (with pad) | |
| Pin puller type | Manual | Air | |
| Pin Dia. | 1-5/8" | 1-5/8" | |
| Pin center | 40" | 40" | |
| Weight | 488 lb | 490 lb | |
| Suspension | Type | Mechanical | Mechanical |
| Spring quantity | 3 Leaf | 4 Leaf | |
| Spring type | Medium arch. | Medium arch. | |
| Spring center | 44" | 44" | |
| Axle quantity | Tandem | Tandem | |
| Axle center | 49" | 49" | |
| Ride Height | 13.75" (See the Note) | 13.75" (See the Note) | |
| Finish | Hot-dipped galvanized | Hot-dipped galvanized | |
Featured
- Integrated Dressed Axle & Brake Assembly -40k rated Frame
- Slider Assembly or Bolt-In Fixed Assembly
- Hot Dipped Galvanized Frame – with 1-5/8” Pins
- Manual or Air Release Slide Pin Mechanism
- Spring & Spring Seats to Match Desired Ride Height = As Required
- HDNABI Installed Axles = 23k or 25k Rated
- HDNABI Brakes = HDNABI ADB XS5 (22.50”) or Drum (16.5 x 7) Coming
- Axle Spindle - Parallel (Std.) optional Tapered
- Wheel End Options – Stemco PPS Plus / ConMet Preset+ / SKF

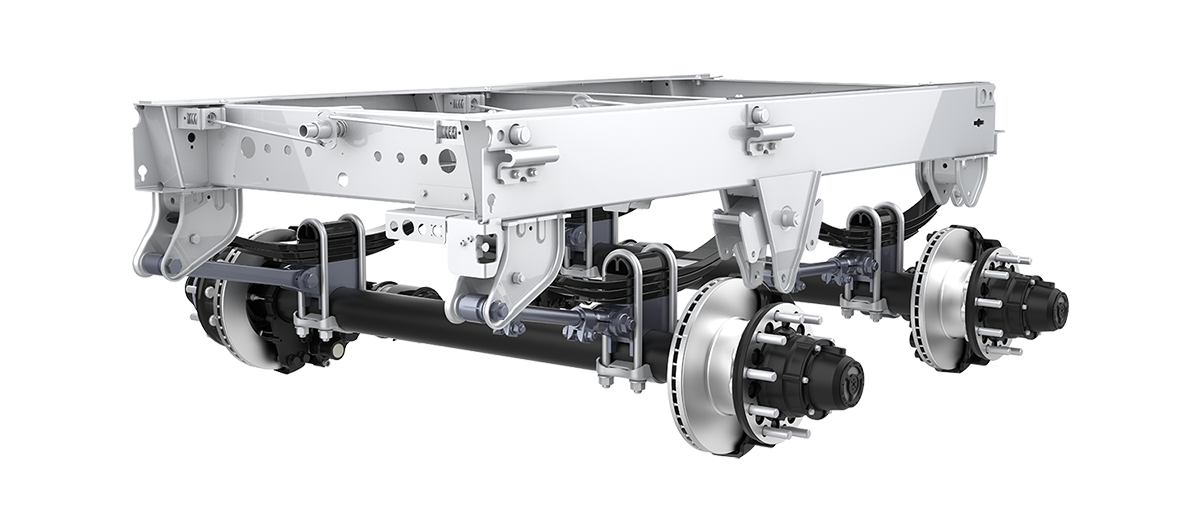

Air Pin puller

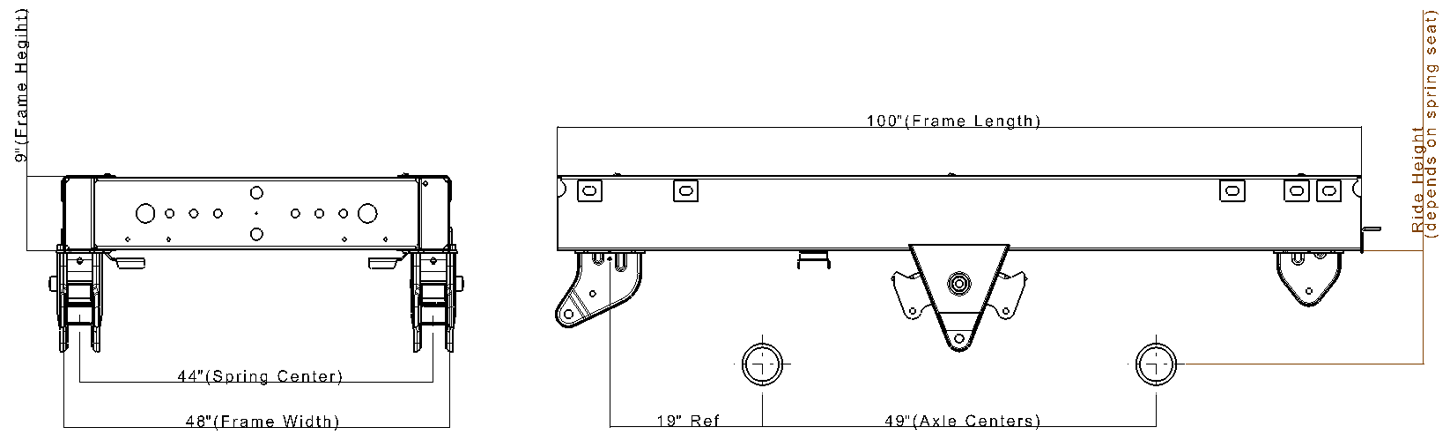

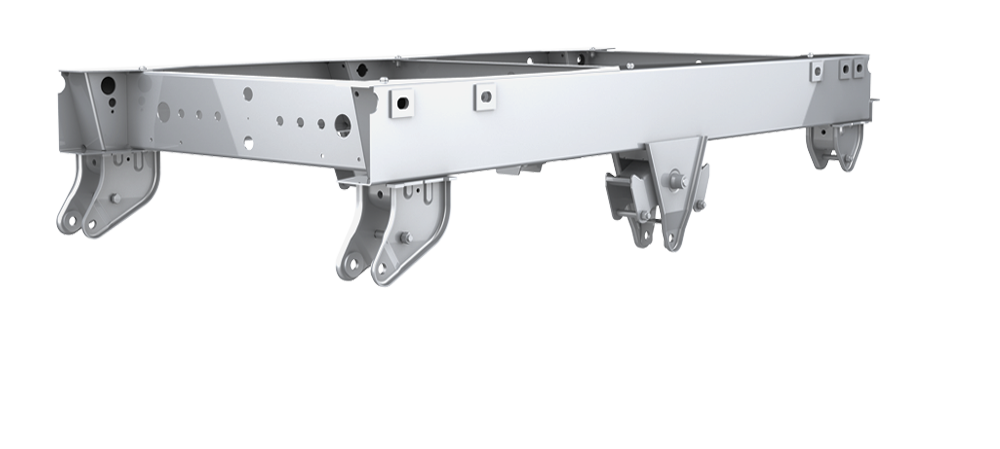

Fixed Tandem Specification
| Items | Fixed Specifications | |
| Frame | Capacity | 40,000 lb |
| Size (W x L x H) | 48" x 100" x 9" | |
| Pin puller type | None | |
| Pin Dia. | 1-5/8" | |
| Pin center | 40" | |
| Weight | 471 lb | |
| Suspension | Type | Mechanical |
| Spring quantity | 3 Leaf | |
| Spring type | Medium arch. | |
| Spring center | 44" | |
| Axle quantity | Single | |
| Axle center | 49" | |
| Ride Height | 13.75" (See the Note) | |
| Finish | Hot-dipped galvanized | |

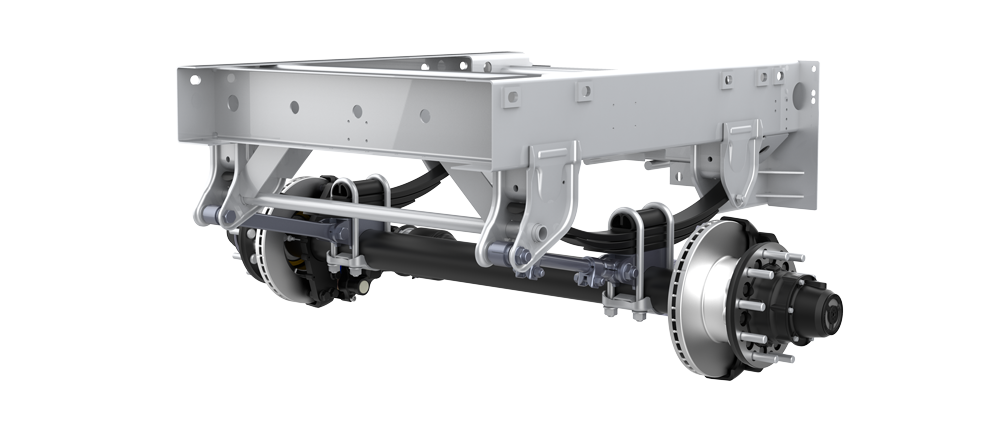

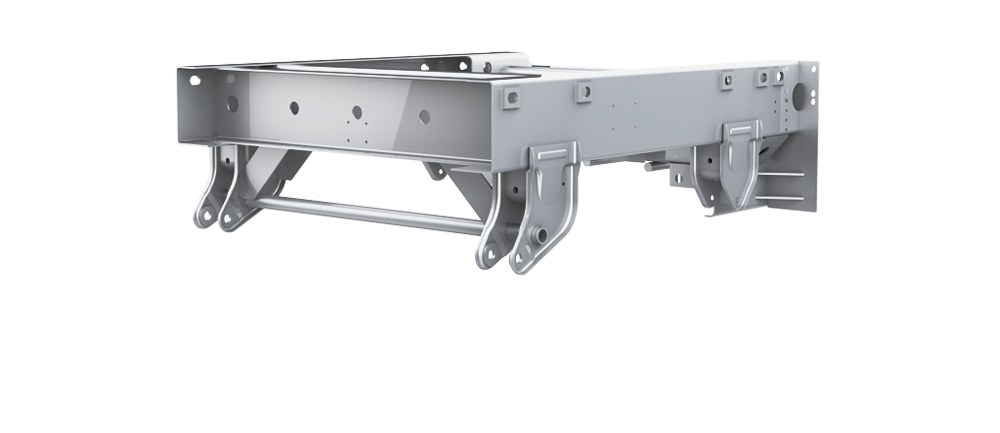

Single Pup
Specification
The HDNABI® suspension slider is built to be the industry’s best in weight and strength. Our slider features an advanced frame design that will suit your specific requirements.
- Frame Capacity : 25,000 lb
- Frame Size : 48" x 60" x 9"
- Frame Pin Dia. : 1.05"
- Frame Weight : 471 lb
- Suspenstion Type : Mechanical
- Suspension Spring quantity : 3 Leaf
- Suspension Spring type : Medium Arch
- Suspension Spring center : 49"
- Suspenstion Axle quantity : Single
- Suspenstion Ride Height : 13.75" (See the Note)
