Harvesting the energy will contribute to reducing gas emissions

Inform the driver of a real-time vehicle problem with a warning lamp and mobile App.

Battery Charging Current Setting – MAX 220A.

EMA24 Regen system generates more than 300A output at 50 mph or higher speed however, the recommended C-rate should not exceed 1C to maintain the battery's stability. (The output current can be programable via EMA24 SW) .

Structure : PMSG.
  • High Efficiency & Power density.
  • 32 pole, 36 slot
  • 2.2kW per wheel / 4,4kW per axle
CAN Communication / Smart Control / Diagnosis
  • Control will not interfere with driving.
  • Regen System safety control.
  • Receive BMS information .
3 phase AC/DC converter
  • Constant current mode charge.
  • Protection : Over voltage/current/Temp.
  • 4.4kW per axle.
Read more

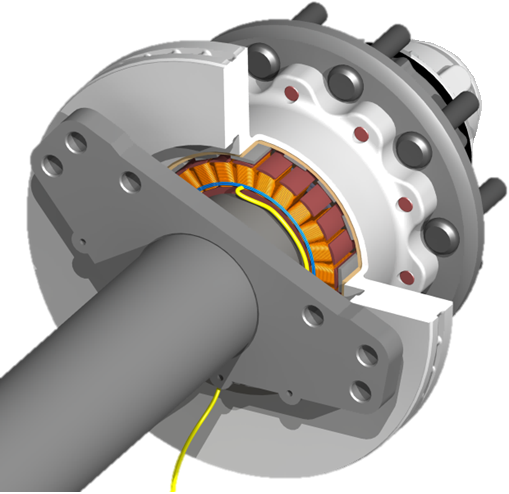

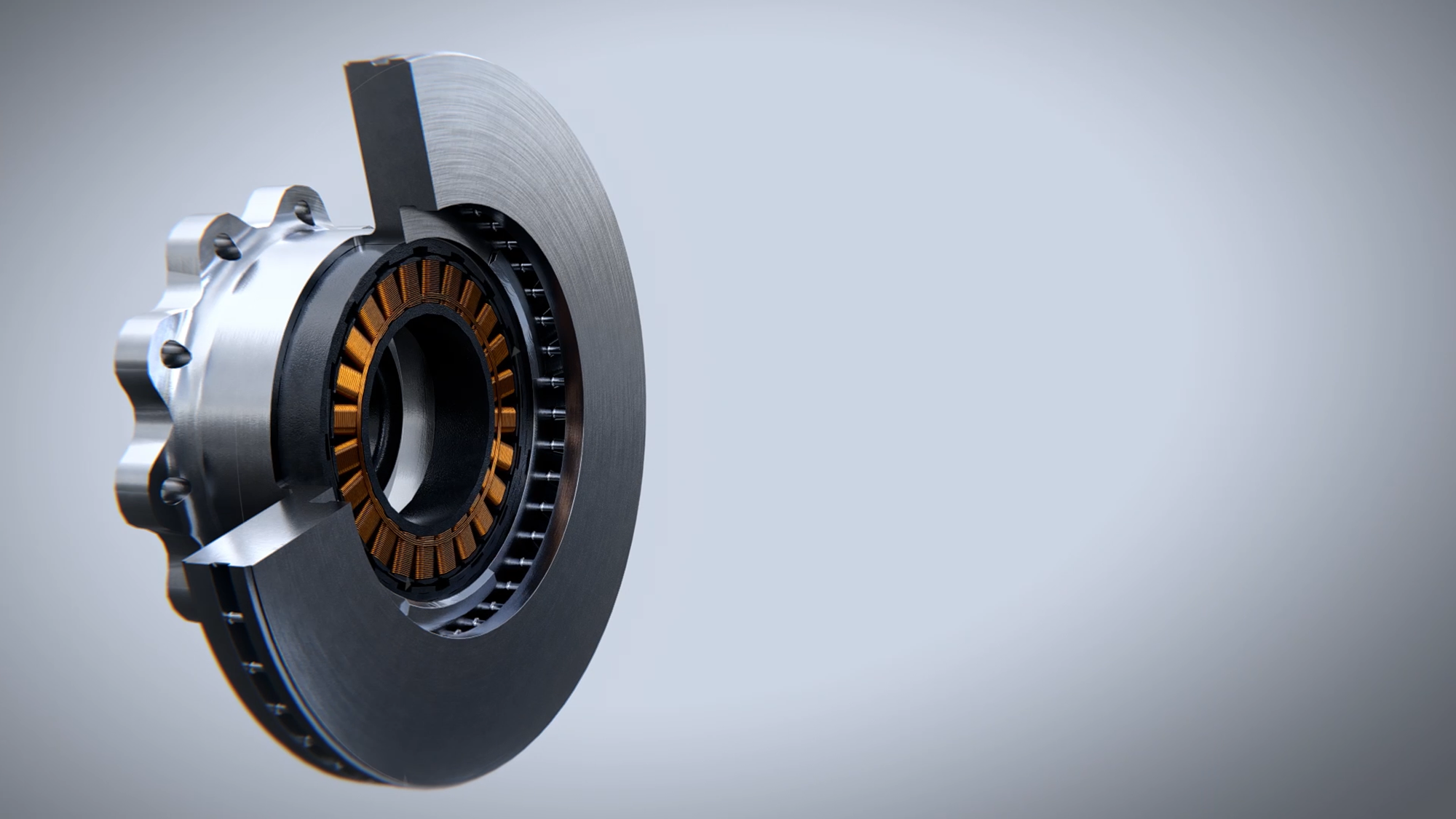

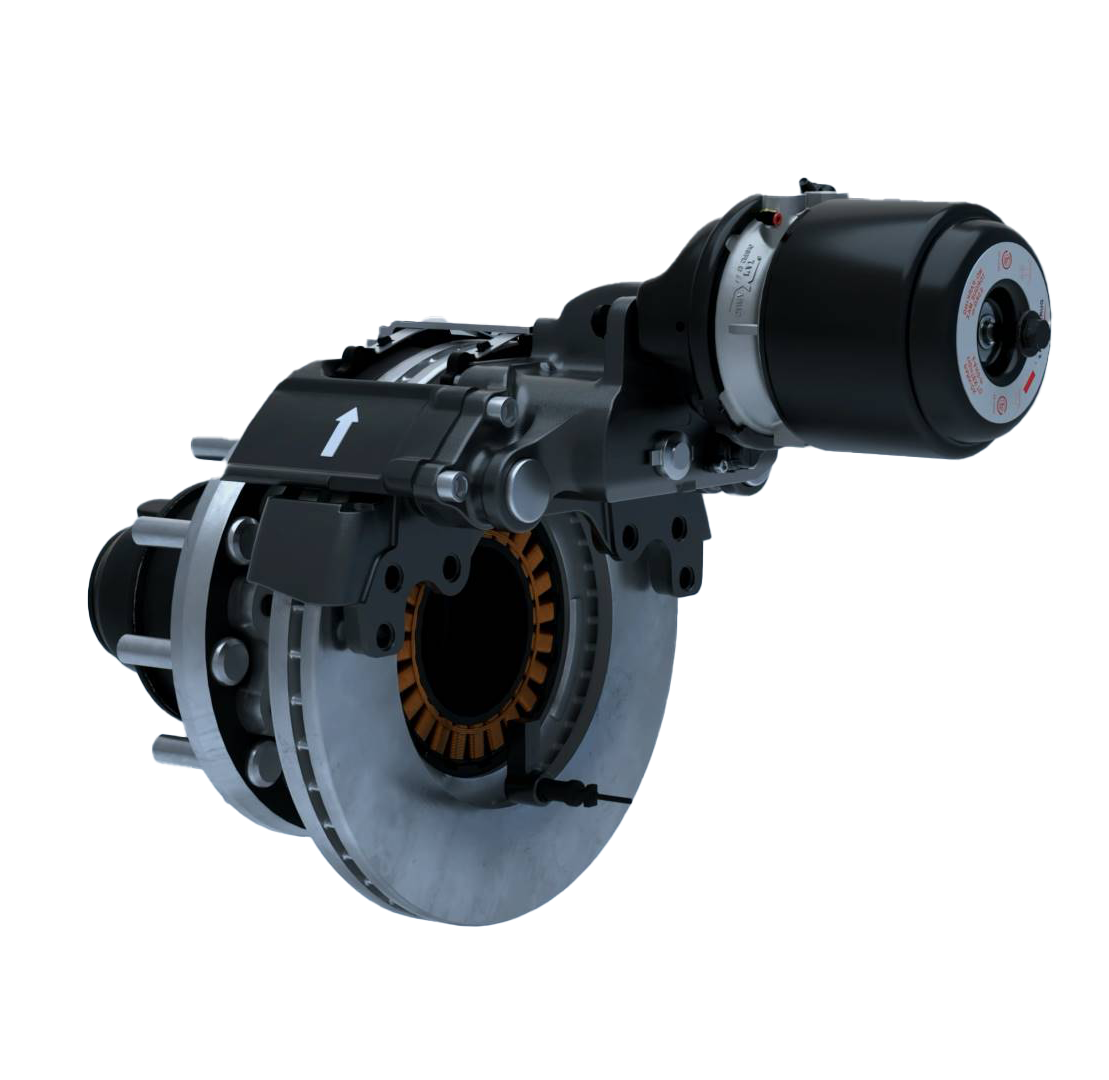

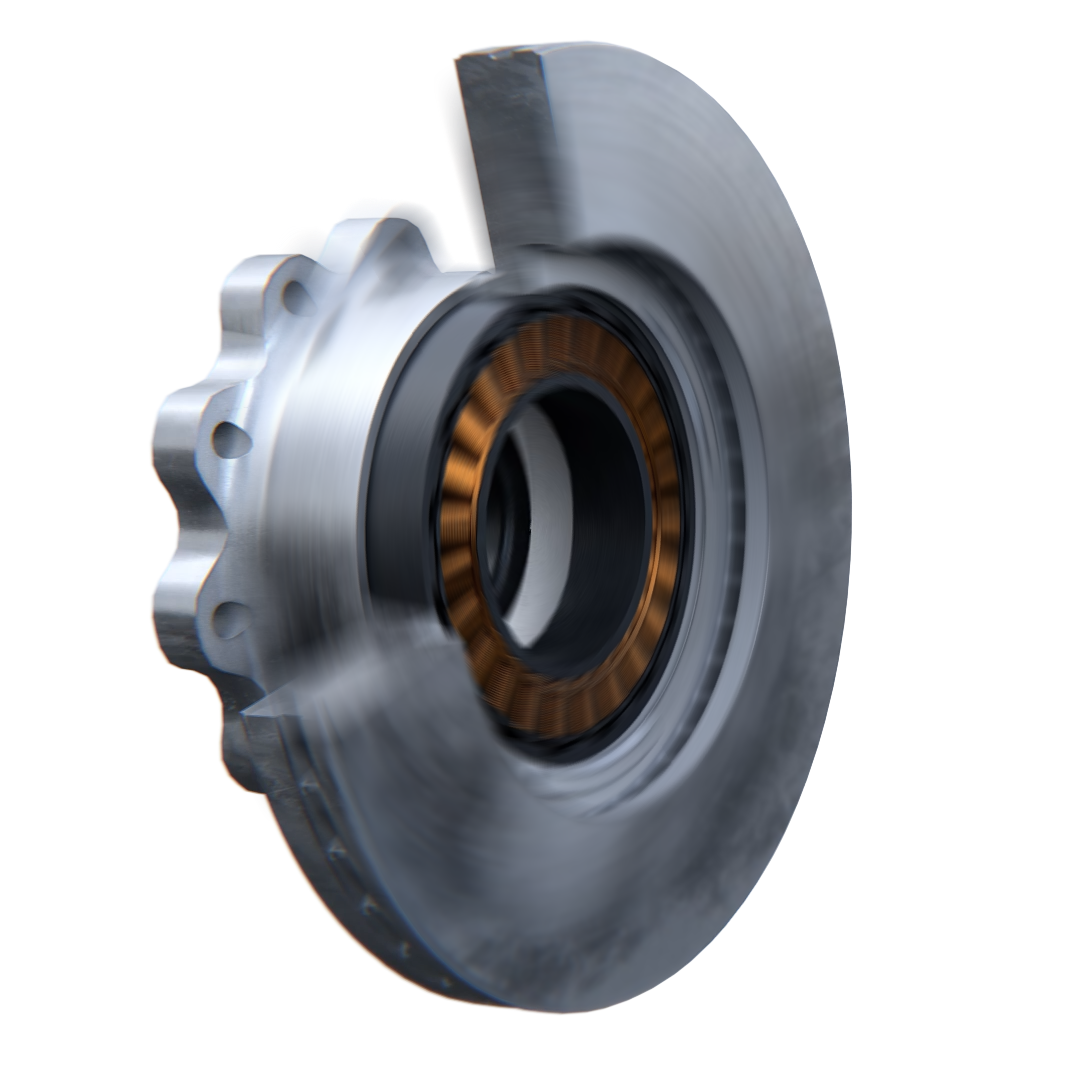

Generator Axle

Generator Axle

Items Specifications
Low Voltage (EMA24L) High Voltage (EMA24H)
Generator  Mechanism Permanent Magnet ←
Synchronous Generator,
Air-cooled
Power (@ 60MPH) Max. 4.4kW Max. 18kW
per Single Axle per Tandem Axle
Energy generation > 25 MPH ←
Stator Size Ø 188 x 49 ㎜ Ø 235 x 55 ㎜
(O.D x Width)
Output Voltage 271 Vac, 3 Phase 282 Vac, 3 Phase
Weight (per Axle) 37 lbf 63 lbf
Converter How it works Air-cooled Air-cooled or
Water-cooled
Output Voltage 12 Vdc 400 / 600 Vdc
Output Current 35 Amp 45 / 30 Amp

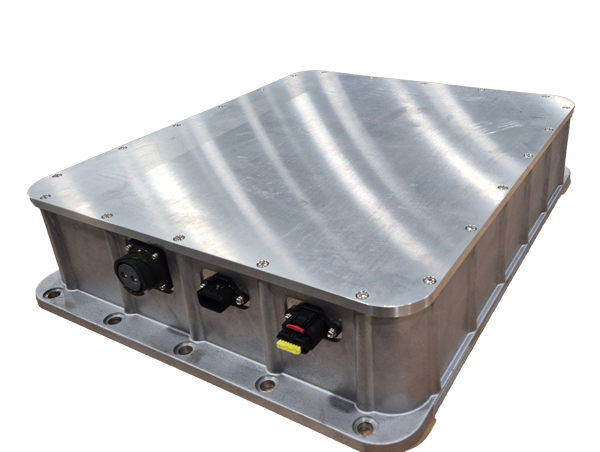

Converter

Converter

  • High Efficiency & Power density PMSG
  • Compact design and easy installation (Installed inside hubs)
  • Low drag structure
  • Telematics with smart system and real-time monitoring
  • Provides electrical isolation for improved safety and system protection
  • Generator stops on overheat, auto restarts on temperature recovery
  • Over voltage/current protection switches off system with automatic return to operation
  • Ingress Protection: Rated IP67 according to IEC 60529
  • Vibration: Compliant with ISO 16750-3 or SAE J1598
