Specification

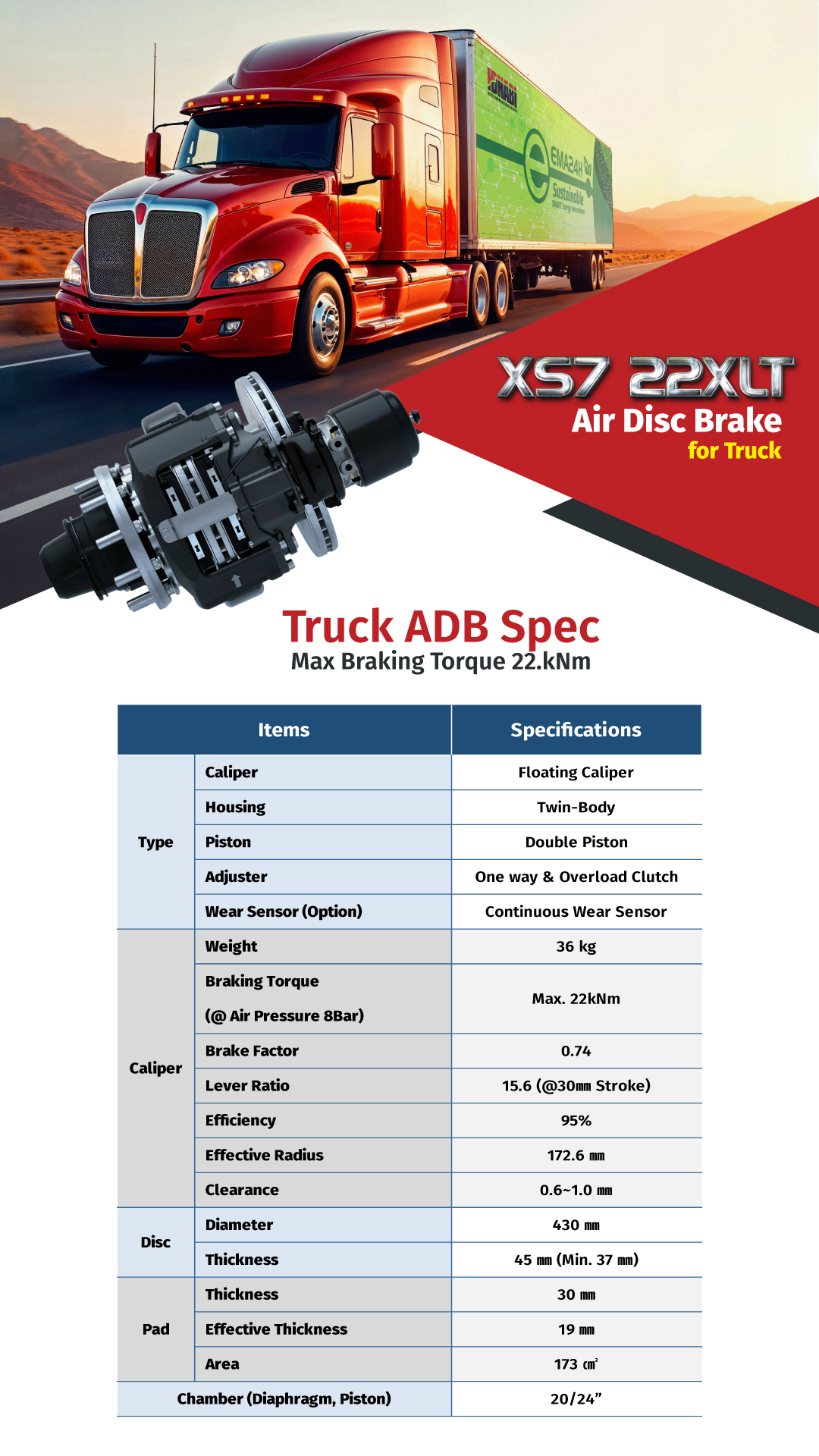

Caliper Truck ADB Spec • Caliper : Floating Caliper
• Housing : Twin-Body
• Piston : Double Piston
• Adjuster: One way & Overload Clutch
• Wear Sensor (Option) : Continuous Wear Sensor
Floating Caliper Pad • Weight 36 kg
• Braking Torque (@ Air Pressure 8Bar) : Max. 22kNm
• Brake Factor : 0.74
• Lever Ratio : 15.6 (@30㎜ Stroke)
• Efficiency : 95%
• Effective Radius : 172.6 ㎜
• Clearance : 0.6~1.0 ㎜
Disc • Diameter : 430 ㎜
• Thickness : 45 ㎜ (Min. 37 ㎜) • Thickness : 30 ㎜
• Effective Thickness : 19 ㎜
• Area : 173 ㎠ Type
