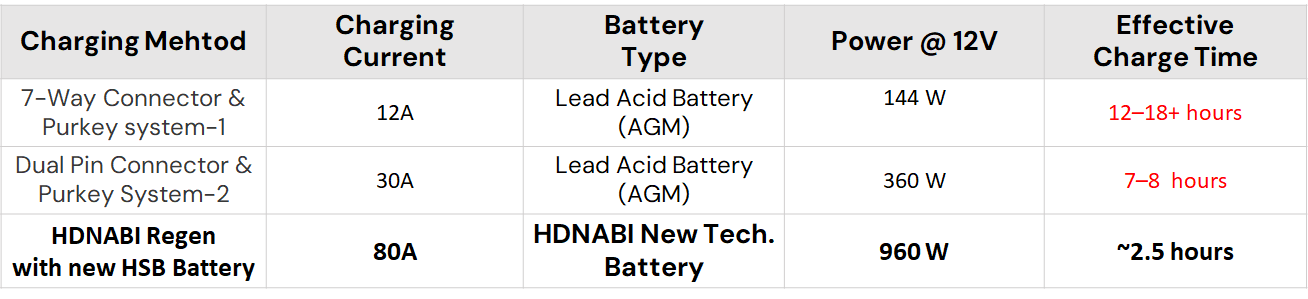

Regen Axle Charging Comparison

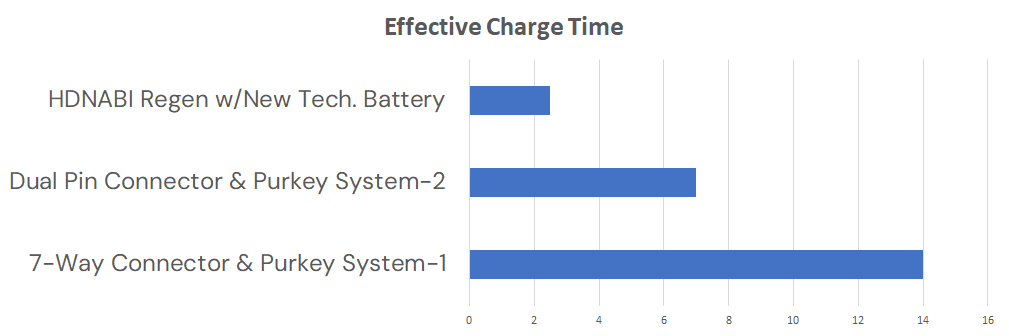

Effective Charge Time Comparison
Why HSB + HDNABI Regen is the Future This is not a battery upgrade.
It is a system upgrade. • ✔ 4–5× faster charging
• ✔ Reliable winter operation
• ✔ Lifetime battery concept
• ✔ Fire‑safe architecture
• ✔ Lower fleet TCO

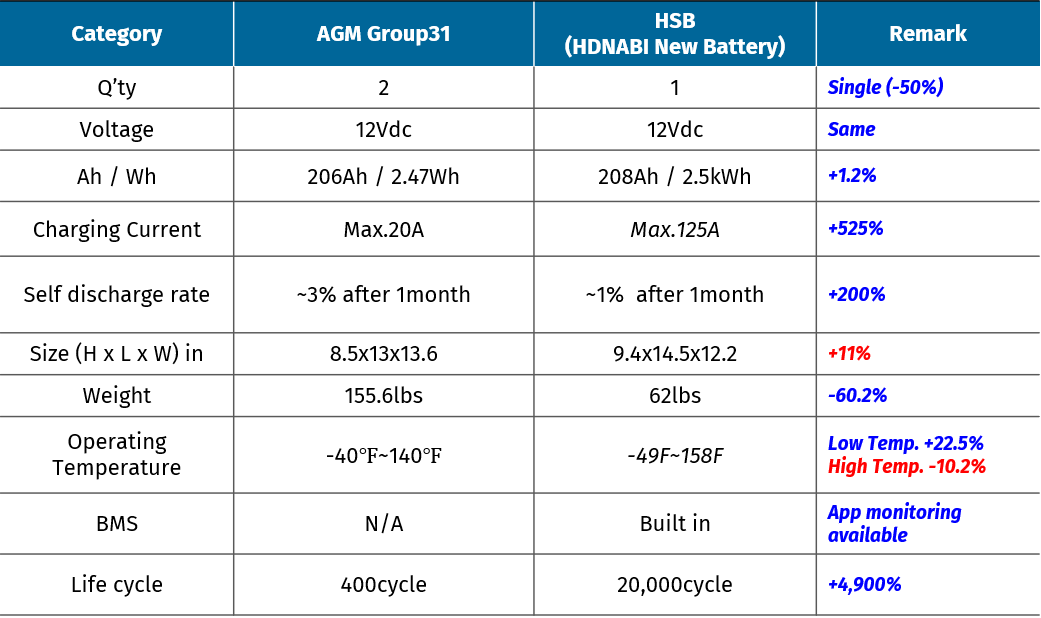

AGM vs HDNABI New Battery Trailer Battery System Comparison

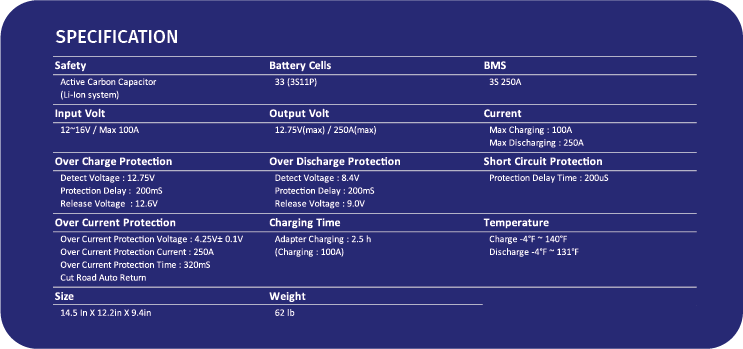

Specification
Axle System 48' Dryvan trailier • Model #: VR2480152-ARS
• MFG, date - XPO, 07/2024
• VIN. 7F21C4828S2025503
• GVWR 67,000lbs / GAWR 20,000lbs HDNABI Axle assembly Smart System • 77.5" seamless 5"O.D., 25K, Parallel spindle
• XS7 22XLT, synchronized dual-piston 5 gear mechanism caliper
• Continuous Wear Sensor ready (CWS)
• Visual wear indicators on calipers and rotors
• Copper-Free High-performance brake pads, 2025 compliant
• Turbo-Flo, 430mm, Iron Rotor
• High-perform. piston brake actuator
• 20K Brake rating • Permanent Magnet Synchronous Generator (PMSG)
• 95% efficiency & high electric power density
• 4.4kW rated power per Single axles @60mph
• Light weight system - 32lbs per tandem axles
• Easy factory install, retrofitable system
GENESYS 3000 • Sensor Module ECU (Temp. Sensor, Smart Chamber, CWS)
• Communication Module ECU (Telematic)
• Warning Light (Sound Speaker Optional)

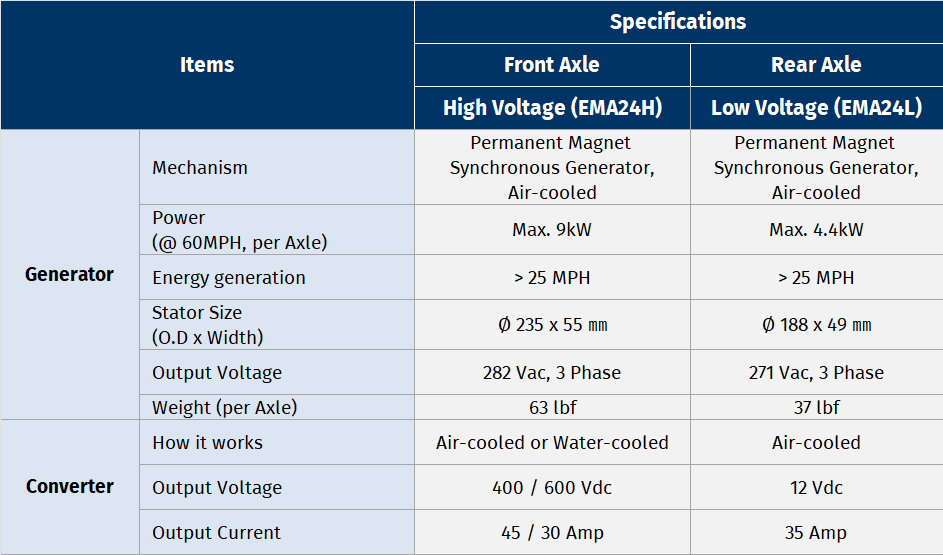

• Driver Application (iOS, Android) Trailer EMA 24 Regen System Heating System • 9 kW-Class Integrated Three-Phase High-Voltage Generator Heating System
• Reliable Heating Operation at Vehicle Speeds Above 25 mph
• Shore Power–Ready PDU for Flexible Power Supply
• Advanced High-Voltage and Low-Voltage Protection Architecture
• Real-Time Monitoring of Temperature and Energy Usage
